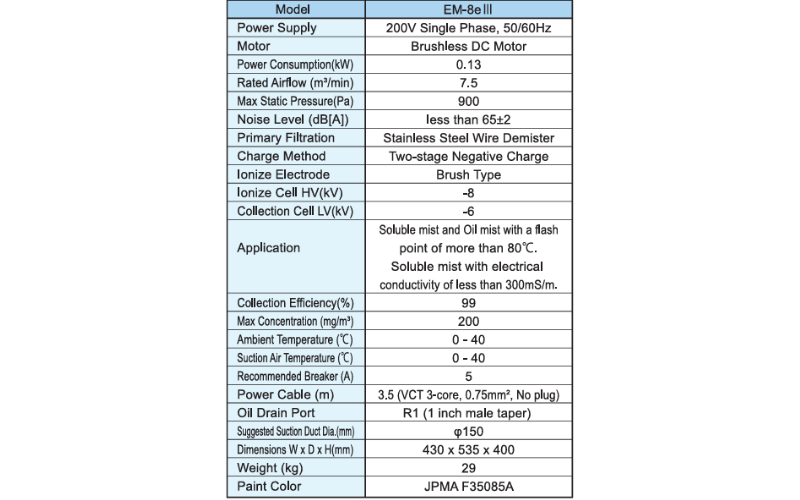

Power Supply
200V Single Phase, 50/60Hz

Motor
Brushless DC Motor

Power Consumption(kW)
0.13

Rated Airflow (m⊃3;/min)
7.5

Max Static Pressure(Pa)
900

Noise Level (dB[A])
less than 65±2

Primary Filtration
Stainless Steel Wire Demister

Charge Method
Two-stage Negative Charge

Ionize Electrode
Brush Type

Ionize Cell HV(kV)
-8

Collection Cell LV(kV)
-6

Application
Soluble mist and Oil mist with a flash
point of more than 80°C.
Soluble mist with electrical
conductivity of less than 300mS/m.

Collection Efficiency(%)
99

Max Concentration (mg/m⊃3;)
200

Ambient Temperature (°C)
0-40

Suction Air Temperature (°C)
0-40

Recommended Breaker (A)
5

Power Cable (m)
3.5 (VCT 3-core, 0.75mm⊃2;, No plug)

Oil Drain Port
R1 (1 inch male taper)

Suggested Suction Duct Dia.(mm)
Φ150

Dimensions W x D x H(mm)
430 x 535 x 400

Weight (kg)
29

Paint Color
JPMA F35085A
